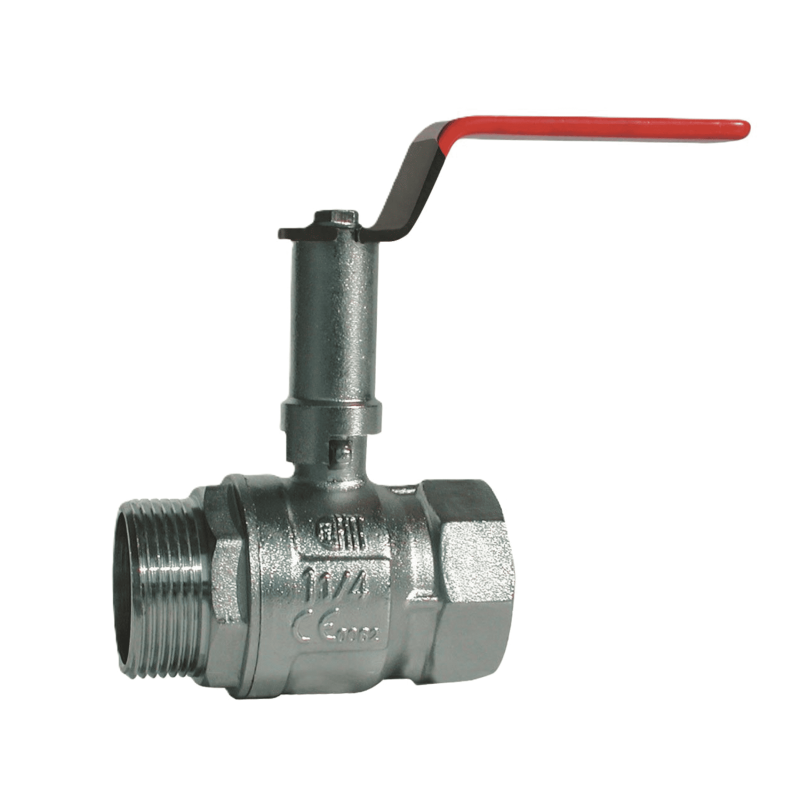

Long stem ball valve, Male/Female, red flat handle
search
  • Long stem ball valve, Male/Female, red flat handle

Long stem ball valve, Male/Female, red flat handle

Ref. 253

• Full bore
• Body, ball and socket hot stamped chrome plated brass OT58
• Maximum temperature 120 °C
• PN 32
• PTFE seats - O ring EPDM
• Handle and nut chrome plated steel
• Double o-ring stem anti leakage technology
• Chrome plated stem with nut
• ISO228 threadings
• ACS
• CE
• Production date and lot number marking body and handle

ILV See the POS marketing kit ADVANCE
  • ACS
  • 4MS
Change thread connection
See all configurations
Ø Code SU Box Pallet Stock Qty
1/2" 29533 12 12 96
3/4" 29534 8 8 64
1" 29535 6 6 48
1"1/4 29536 1 1 40
1"1/2 29537 1 1 20
2" 29538 1 1 16
Créer
Long stem ball valve, Male/Female, red flat handle
Ø Kg PN D L1 R1 L2 H
1/2" 0.245 40 14.5 54 22 87 89
3/4" 0.345 40 19 65 22 87 95
1" 0.511 40 24 76 22 100 99
1"1/4 0.66 25 30 87 24 100 103
1"1/2 1.033 25 37 100 31 129 117
2" 1.442 25 47 113 31 129 126
(mm)
