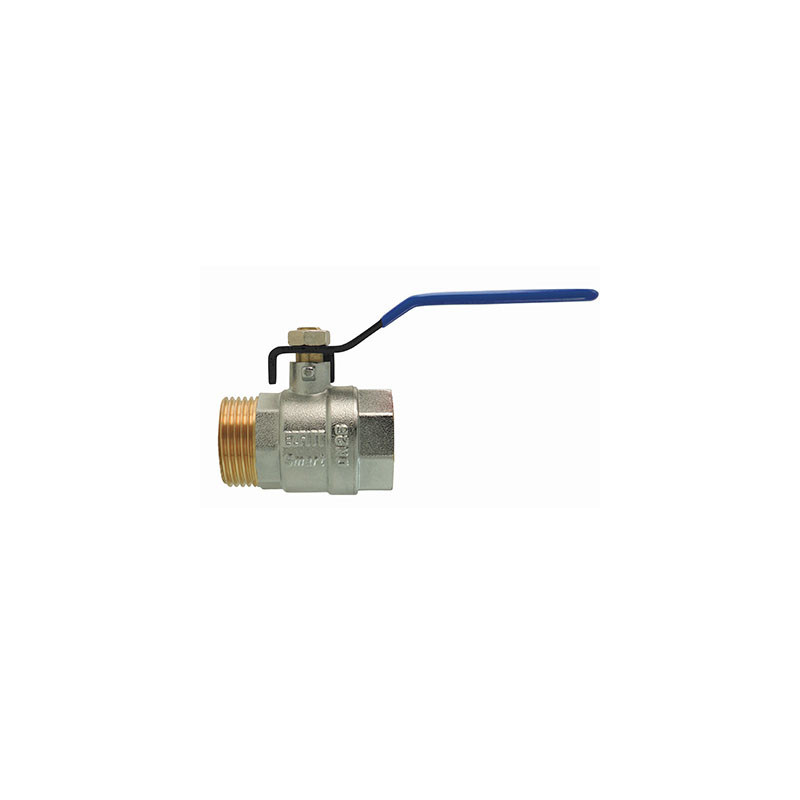

Male/Female ball valve, blue flat handle

Name: Male/Female ball valve, blue flat handle
Brand: Ezfitt
SKU: 121 PB

Ref. 121 PB

- Forged brass ball valve, nickel plated on outer surface.
- Designed, manufactured and controlled according to European standard EN 13828.
- Standard bore.
- Tightness with 2 EPDM O'rings.
- Anti blow-out stem.
- BSPP female threaded ends according to ISO 228-1 standard.
- Flat bearing area to make tightness with flat gasket.
- Reversible handle with operating direction ON/OFF.
- Data matrix code on handle and label (to access technical sheet from a smartphone).
- Marking and traceability (manufacturing date, PN, size, ACS, EZFITT Smart).
- Tightness 100% tested.
- Temperature : -10°C/+120°C

See the POS marketing kit SMART

Change handle

See all configurations

Ref. 121 PB
Diagram and specifications

Ø	Code
3/8"	19211PB	24	24	192
1/2"	19212PB	22	22	176
3/4"	19213PB	16	16	128
1"1/4	19214PB	10	10	80
1"1/2	19215PB	1	1	52
2"	19216PB	1	1	36
1"	19217PB	1	1	22

Ø	Kg	PN	ØD	ØE	L1	L2	H
3/8"	0.103	32	10	23	40	77	40
1/2"	0.137	32	13.5	27	45	85	43
3/4"	0.186	32	18	33	50.5	85	46
1"1/4	0.465	25	28	49.5	68	130	69
1"1/2	0.673	25	35	60.5	83	130	75
2"	1.066	25	45	75.5	96	156	85
1"	0.303	32	22	40	61	104	55

(mm)
