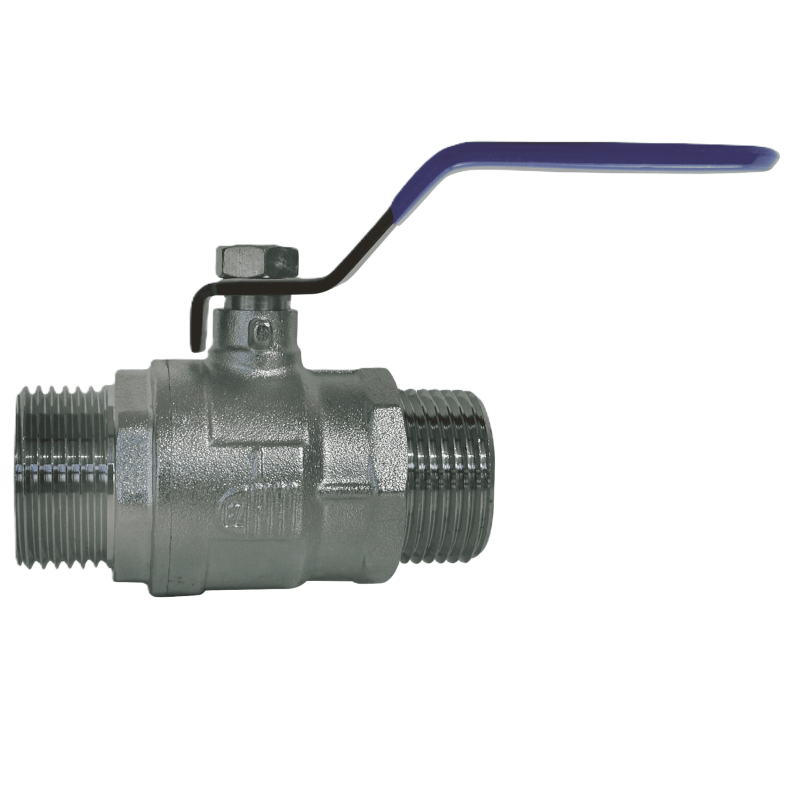

Male/Male ball valve, blue flat handle

Ref. 222 PB
• Full bore
• Body, ball and socket hot stamped chrome plated brass
• Maximum temperature 120 °C
• PN40
• PTFE seats - O ring EPDM
• Steel handle with anti-corrosion black zinc-aluminum coating
• Double o-ring stem anti leakage technology
• Chrome plated stem with nut
• ISO228 threadings
• Production date and lot number marking body and handle
ILV See the POS marketing kit ADVANCE
  • ACS
  • 4MS
Change handle
See all configurations
Ø Code SU Box Pallet Stock Qty
3/8" 29221PB 20 20 160
1/2" 29222PB 14 14 112
3/4" 29223PB 10 10 80
1" 29224PB 6 6 48
1"1/4 29225PB 1 1 45
1"1/2 29226PB 1 1 26
2" 29227PB 1 1 16
Créer
Male/Male ball valve, blue flat handle
Ø Kg PN D L1 E L2 H
3/8" 0.123 40 10 48 24 80 43
1/2" 0.171 40 14.5 61 28 80 46
3/4" 0.291 40 19 71 36 100 54
1" 0.441 40 24 85 43 100 58
1"1/4 0.544 25 30 87 52 114 68
1"1/2 0.893 25 37 102 63 142 83
2" 1.322 25 47 115 79 142 91
(mm)
