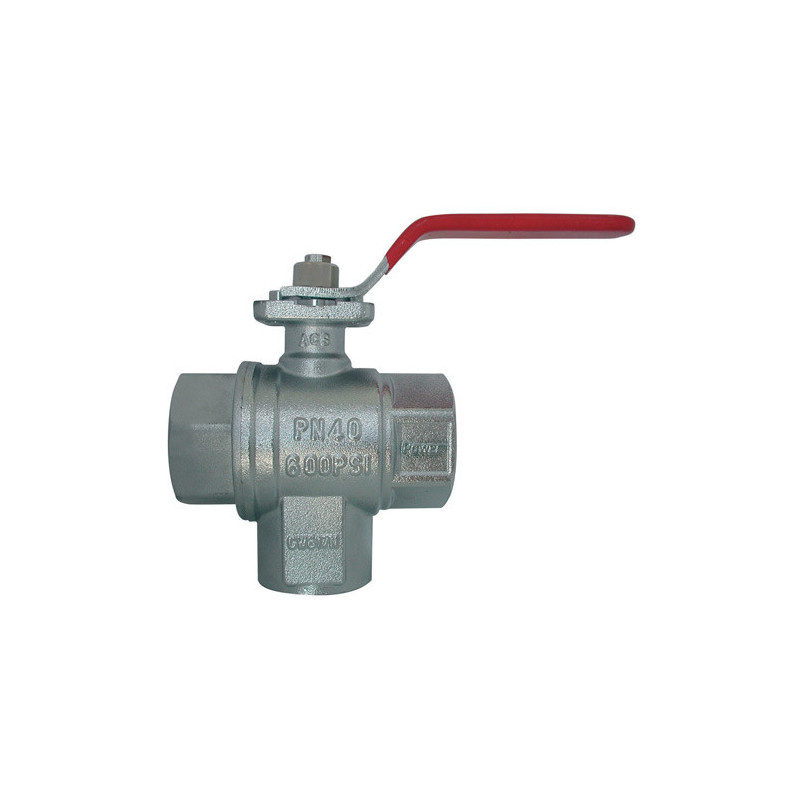

3-ways vertical ball valve, T bore, F/F/F, central water supply, ISO 5211
search
  • 3-ways vertical ball valve, T bore, F/F/F, central water supply, ISO 5211

3-ways vertical ball valve, T bore, F/F/F, central water supply, ISO 5211

Ref. 353 T
• Full bore
• Body, ball and socket brass CW617N
• temperature -20°C to +160°C
• PN 40
• Double waterproofness : 2 FKM o-rings and 1 PTFE packing gland
• Long threads ISO 7-1
• Lot number and production date printed on the handle and the body
ILV See the POS marketing kit POWER
Change bore type
See all configurations
Ø Code SU Box Pallet Stock Qty
1/4" 39531 8 8 64
3/8" 39532 8 8 64
1/2" 39533 6 6 48
3/4" 39534 4 4 32
1" 39535 3 3 24
1"1/4 39536 1 1 18
1"1/2 39537 1 1 12
2" 39538 1 1 8
Créer
3-ways vertical ball valve, T bore, F/F/F, central water supply, ISO 5211
Ø Kg PN D L L1 L2 H H1 H2 ◊ A ØB ØC
1/4" 0.551 64 10 52 116 60 28 9 26 9 38 36 M7
3/8" 0.512 64 10 52 116 60 28 9 26 9 38 36 M7
1/2" 0.679 40 15 64 116 62 31 9 33 9 38 36 M7
3/4" 1.17 40 20 74 116 72 42 9 40 9 38 36 M7
1" 1.926 40 25 89 116 76 45 9 47 9 38 36 M7
1"1/4 2.705 32 32 99 116 80 49 9 54 9 38 36 M7
1"1/2 4.76 25 40 110 171 91 61 11 62 11 50 50 M7
2" 8.578 25 49 129 171 98 67 11 73 11 50 50 M7
(mm)

Downloadable documents

Name Type Size
Download Technical sheet - Power - F/F/F L-port vertical 3 way valve, ISO 5211 pad, red flat handle - Ref : 352 L, 353 T pdf 0.41 Mo Download Download
Télécharger

Technical sheet - Power - F/F/F L-port vertical 3 way valve, ISO 5211 pad, red flat handle - Ref : 352 L, 353 T

0.41 Mo pdf
