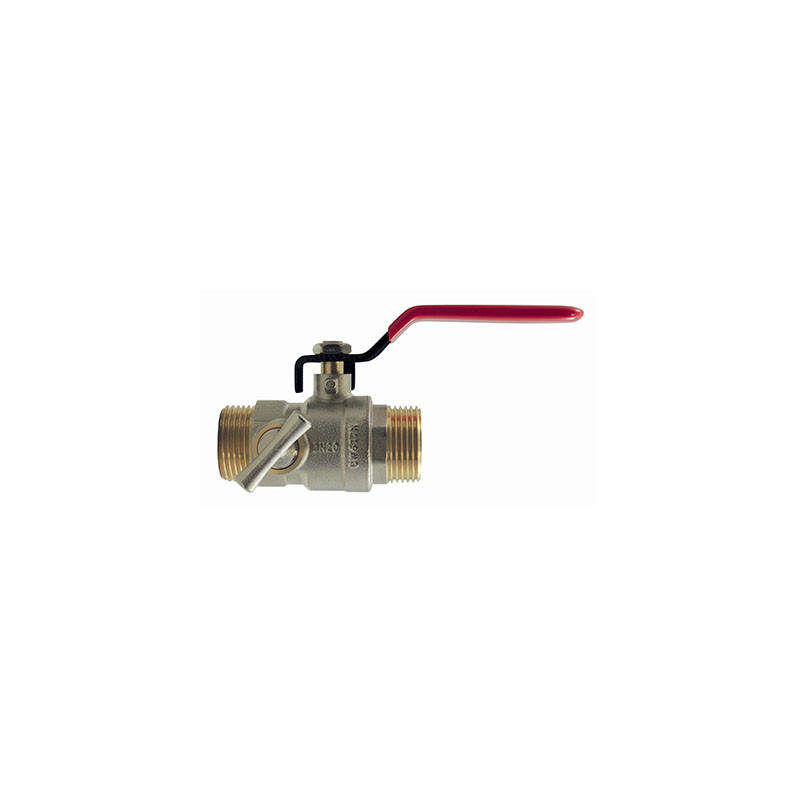

Male/Male drain valve, red flat handle
Ref. 130
- Forged brass ball valve, nickel plated on outer surface.
- Designed, manufactured and controlled according to European standard EN 13828.
- Standard bore.
- Tightness with 2 EPDM O'rings.
- Anti blow-out stem.
- BSPP female threaded ends according to ISO 228-1 standard.
- Flat bearing area to make tightness with flat gasket.
- Reversible handle with operating direction ON/OFF.
- Data matrix code on handle and label (to access technical sheet from a smartphone).
- Marking and traceability (manufacturing date, PN, size, ACS, EZFITT Smart).
- Tightness 100% tested.
- Temperature : -10°C/+120°C
- With Drain Valve
See the POS marketing kit SMART
Change thread connection
| Ø | Kg | PN | ØD | ØE | L1 | L2 | L3 | H |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.187 | 32 | 13.5 | 27 | 61.5 | 85 | 35 | 43 |
| 3/4" | 0.248 | 32 | 18 | 33 | 67 | 85 | 37 | 46 |
