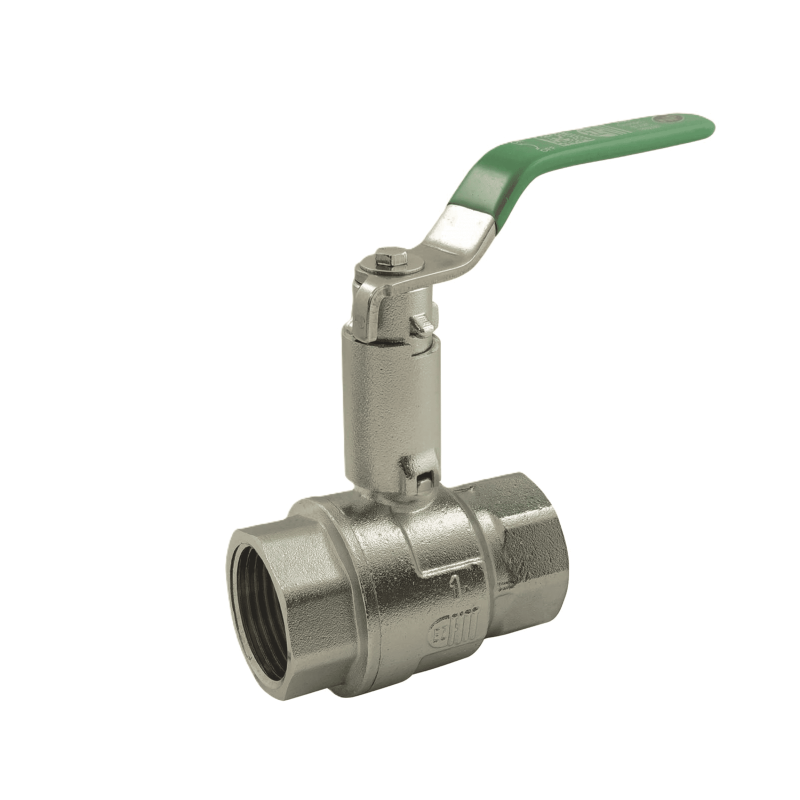

NF long stem ball valve, Female/Female, stainless steel green flat handle

Ref. 560

Technical properties :

- Ball valve made of CW617 forged brass (EU standard), 100% chrome plated
- Design, manufacturing and control according to NF079 standard
- Long stem with fixed external part : No damage of the insulating material
- High insulating thickness on the fixed part : 40 mm minimum (higher value depending on size)
- Full bore
- Peak temperature 110°C (operating temperature : -5°C to +90°C)
- Threads ISO 228-1
- Double EPDM o-ring
- Anti blow-out stem
- Stainless steel handle + nut (anti-corrosion)
- Flashcode on handle (to access to technical sheets and user instructions with a smartphone)
- Complete traceability (batch number on body and handle)

Certification

• NF
• ACS

See the POS marketing kit NF

See all configurations

Ref. 560
Diagram and specifications

Ø	Code
1/2"	59602	8	8	64
3/4"	59603	6	6	48
1"	59604	4	4	32
1"1/4	59605	1	1	30
1"1/2	59606	1	1	18
2"	59607	1	1	12

Ø	Kg	PN	C*	D	L	L1	L2	H
1/2"	0.302	40	113	15	51	30	88	90
3/4"	0.411	40	124.5	20	61	39	88	96
1"	0.634	40	129.5	25	72	47	114	108
1"1/4	0.798	25	159	32	87	58	114	123.5
1"1/2	1.309	25	176	40	98	71	142	145
2"	2.015	16	194	50	120	89	142	154
