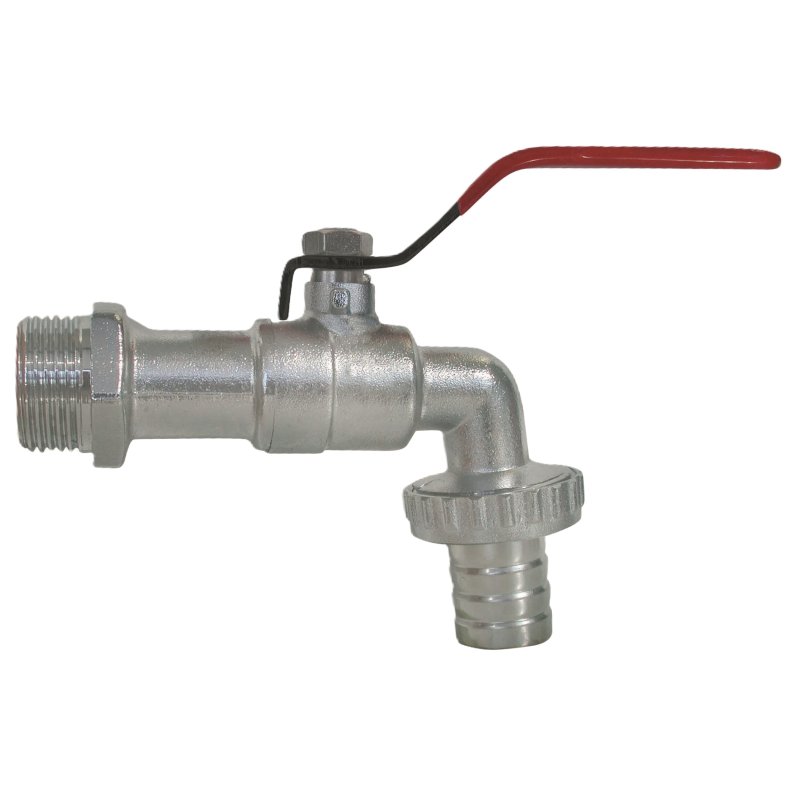

Garden bibcock with hose connector, red flat handle
search
  • Garden bibcock with hose connector, red flat handle

Garden bibcock with hose connector, red flat handle

Ref. 227
• Full bore
• Body, ball and socket hot stamped chrome plated brass
• Hose connection
• Maximum temperature 80 °C
• PN 16 bar
• PTFE seats - O ring EPDM
• Double o-ring stem anti leakage technology
• ISO228 threadings
• ACS
• Production date and lot number marking body
ILV See the POS marketing kit ADVANCE
  • ACS
  • 4MS
Change model
See all configurations
ØA x ØB Code SU Box Pallet Stock Qty
3/8" x 1/2" 29272 15 15 120
1/2" x 3/4" 29273 12 12 96
3/4" x 3/4" 29276 8 8 64
3/4" x 1" 29274 8 8 64
1" x 1"1/4 29275 4 4 32
Créer
Garden bibcock with hose connector, red flat handle
ØA x ØB Kg PN D L1 E L2 H
3/8" x 1/2" 0.145 16 12/13 8 76 80 85
1/2" x 3/4" 0.206 16 15 9 88 80 85
3/4" x 3/4" 0.239 16 15 12 95 80 90
3/4" x 1" 0.253 16 19/20 12 95 80 90
1" x 1"1/4 0.378 16 25 16 106 100 121
(mm)

Downloadable documents

Name Type Size
Download Technical sheet - Advance - Bibcock with hose connector, red flat handle - Ref : 227, 227 R, 217, 217 R, 248 pdf 1.32 Mo Download Download
Télécharger

Technical sheet - Advance - Bibcock with hose connector, red flat handle - Ref : 227, 227 R, 217, 217 R, 248

1.32 Mo pdf
