  • 3-ways horizontal ball valve, L bore, F/F/F, ISO 5211 mounting pad

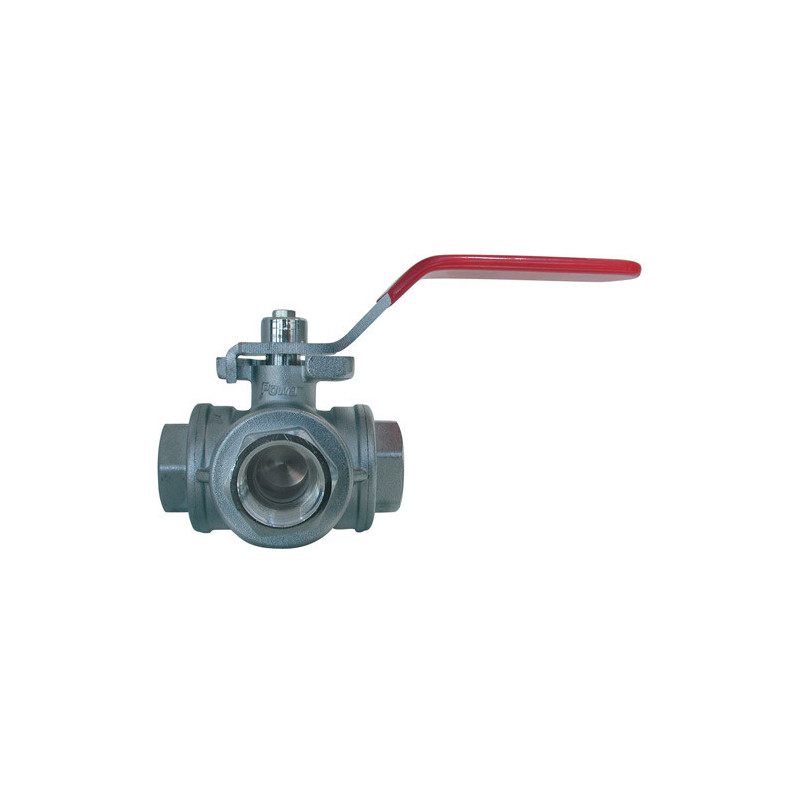

3-ways horizontal ball valve, L bore, F/F/F, ISO 5211 mounting pad

Ref. 350 L
• Full bore
• Body, ball and socket brass CW617N
• temperature -20°C to +160°C
• PN 40
• Double waterproofness : 2 FKM o-rings and 1 PTFE packing gland
• Long threads ISO 7-1
• Lot number and production date printed on the handle and the body
ILV See the POS marketing kit POWER
Change bore type
See all configurations
Ø Code SU Box Pallet Stock Qty
1/4" 39501 6 6 48
3/8" 39502 6 6 48
1/2" 39503 4 4 32
3/4" 39504 2 2 16
1" 39505 1 1 12
1"1/4 39506 1 1 8
1"1/2 39507 1 1 4
2" 39508 1 1 2
Créer
3-ways horizontal ball valve, L bore, F/F/F, ISO 5211 mounting pad
Ø Kg PN D L L1 L2 H H1 H2 ◊ A ØB ØC
1/4" 0.55 64 11 33 67 114 62 30 9 9 38 36 6
3/8" 0.52 64 11 33 67 114 62 30 9 9 38 36 6
1/2" 0.69 40 14 39 78 114 64 32 9 9 38 36 6
3/4" 1.156 40 19 43 87 143 81 41 11 11 50 50 7
1" 1.937 40 25 52 105 143 90 49 11 11 50 50 7
1"1/4 2.78 32 32 61 122 143 100 59 11 11 50 50 7
1"1/2 4.92 25 40 69 140 233 107 73 14 14 70 70 9
2" 9 25 50 83 166 233 119 85 14 14 70 70 9
(mm)
