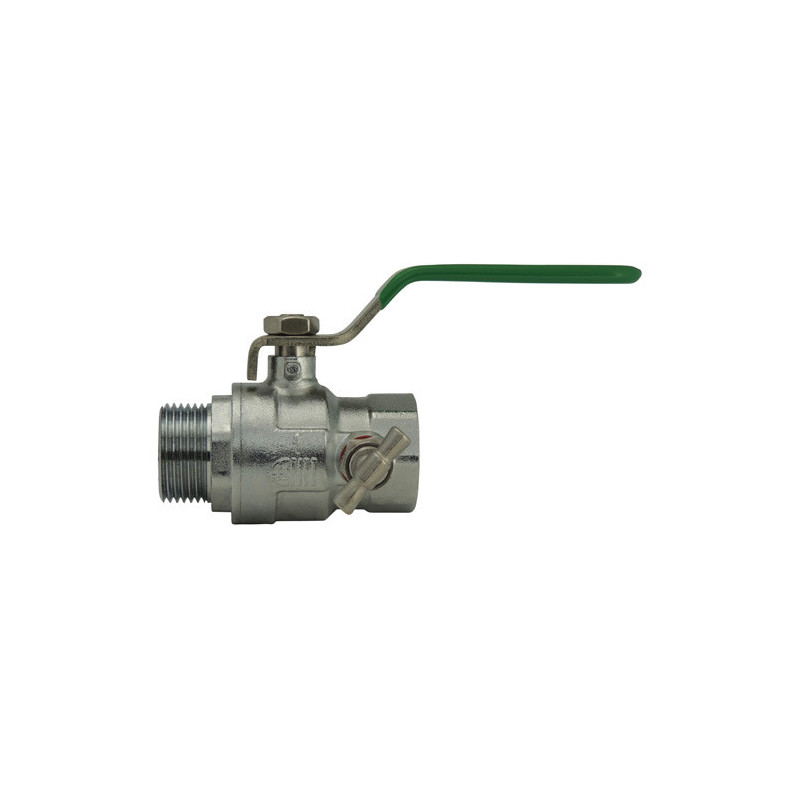

NF drain valve Male/Female, stainless steel green flat handle

Ref. 529
Technical properties :

- Drain valve made of CW617 forged brass (EU standard), 100% chrome plated
- Design, manufacturing and control according to NF079 standard
- Drain 1/4
- Full bore
- Peak temperature 110°C (operating temperature : -5°C to +90°C)
- Threads ISO 228-1
- Double EPDM o-ring
- Anti blow-out stem
- Stainless steel handle + nut (anti-corrosion)
- Flashcode on handle (to access to technical sheets and user instructions with a smartphone)
- Complete traceability (batch number on body and handle)
ILV See the POS marketing kit NF
  • NF
  • ACS
  • 4MS
Change handle
See all configurations
Ø Code SU Box Pallet Stock Qty
1/2" 59292 12 12 96
3/4" 59293 6 6 48
1" 59294 4 4 32
Créer
NF drain valve Male/Female, stainless steel green flat handle
Ø Kg PN D L L1 L2 H
1/2" 0.276 40 14 65 30 88 48
3/4" 0.383 40 19 74 39 88 52
1" 0.602 40 24.5 85 47 114 65
(mm)

Downloadable documents

Name Type Size
Technical sheet - NF - F/F drain valve, green flat handle - Ref : 526, 528, 529, 530, 531, 532 pdf 1.71 Mo Download

Technical sheet - NF - F/F drain valve, green flat handle - Ref : 526, 528, 529, 530, 531, 532

1.71 Mo pdf
